Dry Cement Suction Hose

Name: VFP VBS150 Dry Cement Suction Hose
Brand: VFP
SKU: VBS150

VBS150 · VBS300 · DRY CEMENT SUCTION · 29 INHG VACUUM

Mandrel-built suction-and-discharge hose for dry cement, lime, grain and other abrasive bulk — an abrasion-resistant tube and dual helix wire for full vacuum, in 150 and 300 PSI grades.

Request a Quote → View Specs

150 / 300 PSI

Working Pressure

450 / 900 PSI

Burst Pressure

Sizes · 2"–12"

29 inHg

Vacuum Rating

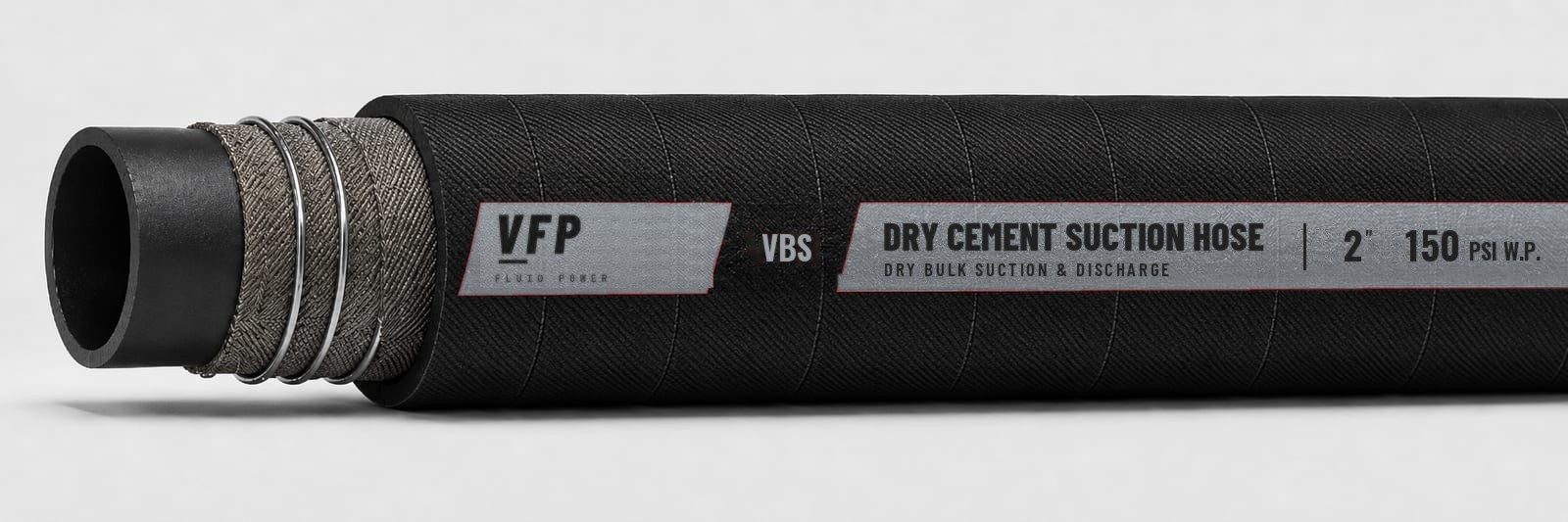

VFP VBS150 / VBS300 dry cement suction hose — render with the VFP label band and a cut-away end showing the construction

Overview

Suction and discharge in one hose

VBS is our dry cement suction hose: mandrel-built for consistent dimensions, with a dual helix wire that keeps the bore round under 29 inHg of vacuum, so the same hose loads and unloads. The tube is compounded for abrasion resistance, so it stands up to cement, lime, grain and pebble. Choose VBS150 for standard bulk transfer or VBS300 for higher-pressure pneumatic lines.

Tube

Black conductive NR, abrasion-resistant — abrasion loss under 60 mm³ (DIN 53516).

Reinforcement

High-tensile textile cords with an embedded dual helix wire for full suction (vacuum) and discharge service.

Cover

Black conductive SBR/NR with a wrapped finish — abrasion- and ozone-resistant.

Dry CementLimeGrainPebblesAbrasive Dry BulkPneumatic Bulk Trailers

Hose Identification Label

150 PSI VBS150 — Dimensional & Pressure Data

VBS150 · Dry Cement Suction Hose · Mandrel-Built · Black Wrapped Cover
Size	I.D. (mm)	O.D. (mm)	W.P. (PSI)	B.P. (PSI)	Min Bend R (mm)	Weight (kg/m)	Std. Length (ft)
2"	51	72.0	150	450	255	2.81	200
2-1/2"	63	84.0	150	450	315	3.42	200
3"	76	97.0	150	450	380	4.03	200
3-1/2"	89	110.4	150	450	445	4.81	200
4"	102	123.4	150	450	510	5.66	200
5"	127	152.8	150	450	635	8.48	200
6"	152	188.6	150	450	760	14.24	100
8"	204	238.2	150	450	1020	19.44	100
10"	254	292.6	150	450	1270	27.86	40
12"	304	351.0	150	450	1520	40.29	40

Working pressure 150 PSI, burst 450 PSI across all sizes. Vacuum 29 inHg (737 mmHg). Temperature −30 °C to 80 °C (−22 °F to 176 °F).

300 PSI VBS300 — Dimensional & Pressure Data

VBS300 · Dry Cement Suction Hose · Mandrel-Built · Black Wrapped Cover
Size	I.D. (mm)	O.D. (mm)	W.P. (PSI)	B.P. (PSI)	Tube Wall (mm)	Min Bend R (mm)	Weight (kg/m)	Std. Length (ft)
2"	51	72.4	300	900	6.4	255	2.91	200
2-1/2"	63	84.4	300	900	6.4	315	3.47	200
3"	76	99.8	300	900	6.4	380	4.57	200
3-1/2"	89	112.8	300	900	6.4	445	5.35	200
4"	102	127.4	300	900	6.4	510	6.64	200
5"	127	153.2	300	900	6.4	635	8.58	200
6"	152	179.8	300	900	6.4	760	11.16	200
8"	204	241.4	300	900	8.0	1020	20.96	200
10"	254	296.2	300	900	8.0	1270	29.84	40
12"	304	357.4	300	900	9.6	1520	44.68	40

Working pressure 300 PSI, burst 900 PSI (3:1) across all sizes. Vacuum 29 inHg (737 mmHg). Temperature −30 °C to 80 °C (−22 °F to 176 °F). Full material spec available on request.

Other industrial hose

VBD150 · VBD300

Need dry cement hose? Tell us the sizes.

Send us your sizes and quantities — we'll come back with pricing and lead time. Distributor inquiries welcome.
