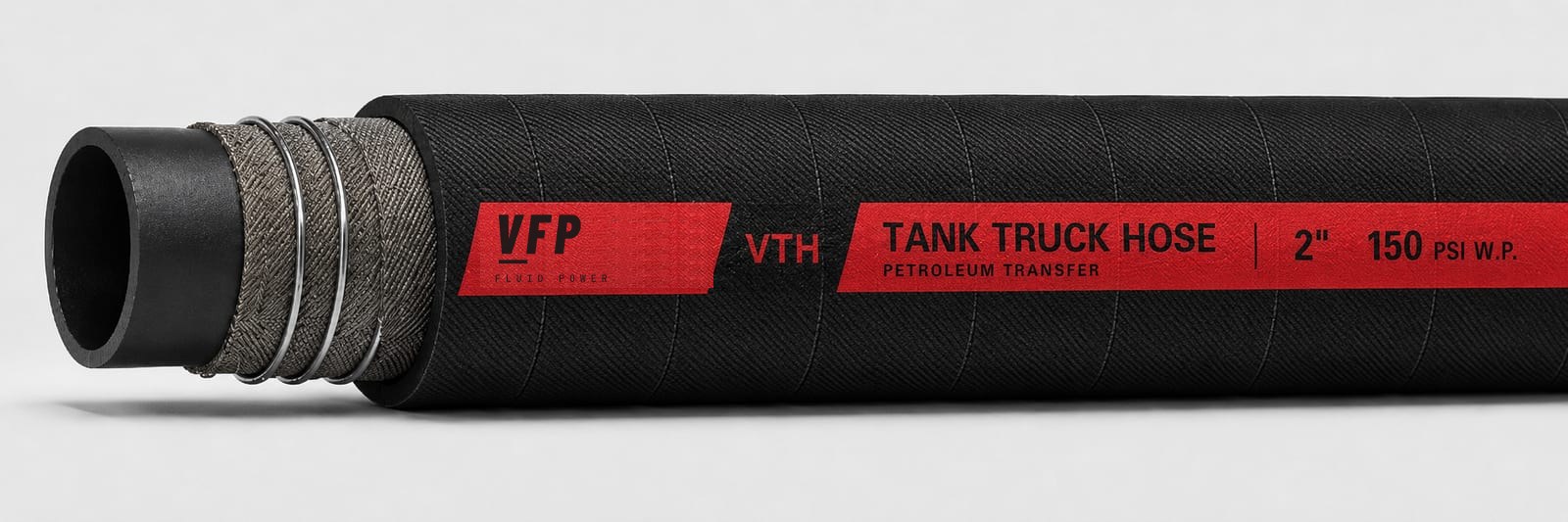

Wrapped-cover petroleum transfer hose for loading and unloading tank trucks — a nitrile tube with dual-helix suction-and-delivery construction and a tough black cover, built for fuel and oil transfer in the yard and on the road.
VTH is a black, wrapped-cover suction-and-delivery hose for moving fuel and oil at tank truck loading racks and bulk plants. The dual helix wire carries it through suction (29 inHg vacuum) and delivery, while the nitrile tube handles petroleum products up to 50% aromatic content and the abrasion-resistant cover stands up to the work. Choose VTH150 (150 PSI, 4:1) or VTH300 (300 PSI, 3:1) for higher-pressure lines.
Tube
Black nitrile synthetic rubber for petroleum products up to 50% aromatic content.
Reinforcement
High-tensile textile cords with an embedded dual helix wire for full suction (vacuum) and delivery service.
Cover
Black, wrapped-surface synthetic rubber — abrasion-, oil- and ozone-resistant.
VTH150 · TANK TRUCK HOSE · PETROLEUM TRANSFER · 150 PSI W.P. · hover to zoom
VTH300 · TANK TRUCK HOSE · PETROLEUM TRANSFER · 300 PSI W.P. · hover to zoom
150 PSI VTH150 — Dimensional & Pressure Data
VTH150 · Tank Truck Hose · Oil Suction & Delivery · Black Wrapped Cover
Size
I.D. (mm)
O.D. (mm)
W.P. (PSI)
B.P. (PSI)
Min Bend R (mm)
Weight (lb/ft)
Std. Length (ft)
1/2"
13
23.6
150
600
65
0.36
200
5/8"
16
26.6
150
600
80
0.41
200
3/4"
19
29.6
150
600
95
0.47
200
1"
25
35.6
150
600
125
0.58
200
1-1/4"
32
42.6
150
600
160
0.73
200
1-1/2"
38
49.4
150
600
190
0.90
200
2"
51
64.0
150
600
255
1.35
200
2-1/2"
63
76.0
150
600
315
1.62
200
3"
76
91.0
150
600
380
2.20
200
3-1/2"
89
104.0
150
600
445
2.61
200
4"
102
117.0
150
600
510
3.05
200
5"
127
144.4
150
600
635
4.39
200
6"
152
171.8
150
600
760
6.03
200
8"
204
227.0
150
600
1020
10.21
200
10"
254
283.4
150
600
1270
16.03
40
12"
304
339.8
150
600
1520
22.92
40
Working pressure 150 PSI, burst 600 PSI (4:1) across all sizes. Vacuum 29 inHg (737 mmHg). Temperature −30 °C to 80 °C (−22 °F to 176 °F).
300 PSI VTH300 — Dimensional & Pressure Data
VTH300 · Tank Truck Hose · Oil Suction & Delivery · Black Wrapped Cover
Size
I.D. (mm)
O.D. (mm)
W.P. (PSI)
B.P. (PSI)
Min Bend R (mm)
Weight (lb/ft)
Std. Length (ft)
1/2"
13
23.6
300
900
65
0.36
200
5/8"
16
26.6
300
900
80
0.41
200
3/4"
19
29.6
300
900
95
0.47
200
1"
25
36.4
300
900
125
0.58
200
1-1/4"
32
43.4
300
900
160
0.73
200
1-1/2"
38
49.4
300
900
190
0.85
200
2"
51
64.4
300
900
255
1.25
200
2-1/2"
63
76.4
300
900
315
1.62
200
3"
76
91.8
300
900
380
1.94
200
3-1/2"
89
104.8
300
900
445
2.31
200
4"
102
119.4
300
900
510
3.00
200
5"
127
146.8
300
900
635
3.93
200
6"
152
173.4
300
900
760
5.52
200
8"
204
230.2
300
900
1020
9.53
200
10"
254
286.6
300
900
1270
14.13
40
12"
304
346.2
300
900
1520
19.44
40
Working pressure 300 PSI, burst 900 PSI (3:1) across all sizes. Vacuum 29 inHg (737 mmHg). Temperature −30 °C to 80 °C (−22 °F to 176 °F). Full material spec available on request.
